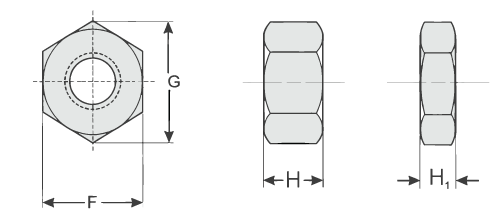

| Diâmetro Nominal | F | G | H | H1 | ||||
|---|---|---|---|---|---|---|---|---|
| máx. | min. | máx. | min. | máx. | min. | máx. | min. | |
| 1/4" | 12.7 | 12.39 | 14.655 | 14.122 | 6.35 | 5.537 | 4.775 | 3.962 |
| 5/16" | 14.274 | 13.868 | 16.51 | 15.798 | 7.975 | 7.112 | 5.588 | 4.724 |
| 3/8" | 17.475 | 16.992 | 20.167 | 19.38 | 9.575 | 8.661 | 6.4 | 5.486 |
| 7/16" | 19.05 | 18.491 | 21.996 | 21.082 | 11.201 | 10.236 | 7.239 | 6.273 |
| 1/2" | 22.225 | 21.59 | 25.654 | 24.612 | 12.801 | 11.785 | 8.051 | 7.035 |
| 9/16" | 23.825 | 23.088 | 27.508 | 26.339 | 14.427 | 13.36 | 8.864 | 7.797 |
| 5/8" | 26.974 | 26.187 | 31.165 | 29.845 | 16.027 | 14.909 | 9.677 | 8.559 |
| 3/4" | 31.75 | 30.784 | 36.652 | 35.102 | 19.253 | 18.034 | 11.328 | 10.109 |
| 7/8" | 36.525 | 35.407 | 42.164 | 40.36 | 22.479 | 21.158 | 12.954 | 11.633 |
| 1" | 41.275 | 40.005 | 47.65 | 45.618 | 25.704 | 24.282 | 14.605 | 13.182 |
| 1.1/8" | 46.024 | 44.602 | 53.162 | 50.85 | 28.93 | 27.406 | 16.23 | 14.706 |
| 1.1/4" | 50.8 | 49.225 | 58.648 | 56.108 | 31.775 | 30.149 | 19.075 | 17.449 |
| 1.3/8" | 55.575 | 53.822 | 64.16 | 61.366 | 35.001 | 33.247 | 20.701 | 18.973 |
| 1.1/2" | 60.325 | 58.42 | 69.646 | 66.598 | 38.227 | 36.398 | 22.352 | 20.523 |
| 1.5/8" | 65.074 | 63.017 | 75.158 | 71.831 | 41.452 | 39.522 | 23.977 | 22.047 |
| 1.3/4" | 69.85 | 67.614 | 80.645 | 77.089 | 44.678 | 42.646 | 25.628 | 23.596 |
| 1.7/8" | 74.625 | 72.237 | 86.156 | 82.346 | 47.904 | 45.77 | 27.254 | 25.12 |
| 2" | 79.375 | 76.835 | 91.643 | 87.604 | 51.13 | 48.895 | 28.905 | 26.67 |
| 2.1/4" | 88.9 | 86.055 | 102.641 | 98.094 | 57.175 | 54.737 | 31.775 | 29.337 |
| 2.1/2" | 98.425 | 95.25 | 113.639 | 108.585 | 63.627 | 60.985 | 38.227 | 35.585 |
| 2.3/4" | 107.95 | 104.444 | 124.637 | 119.075 | 70.078 | 67.233 | 41.503 | 38.658 |
| 3" | 117.475 | 113.665 | 135.636 | 129.59 | 76.53 | 73.482 | 44.78 | 41.732 |
| 3.1/4" | 127 | 122.885 | 146.659 | 140.081 | 82.6 | 79.349 | 47.65 | 44.399 |
| 3.1/2" | 136.525 | 132.08 | 157.657 | 150.571 | 89.052 | 85.598 | 50.952 | 47.498 |
| 3.3/4" | 146.05 | 141.274 | 168.656 | 161.061 | 95.504 | 91.846 | 54.203 | 50.546 |
| 4" | 155.575 | 150.495 | 179.654 | 171.677 | 101.955 | 98.094 | 57.505 | 53.644 |
